Gap-Free Cornering
One radius belt carries product through the turn with no dead plate and no transfer gap, eliminating the tip-and-jam point that plagues butt-joined layouts.

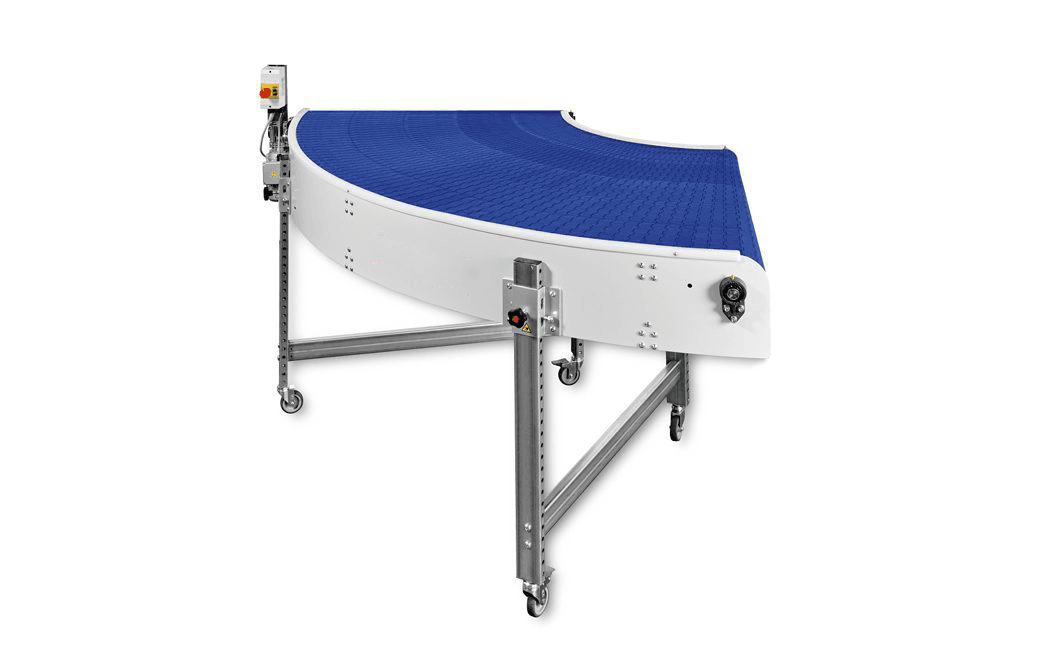

Curved Belt Conveyors
Probe's curved belt conveyors turn your product line through a corner on one continuous belt, with no transfer point, gap or jam. Available in 30°, 45°, 60°, 90° and 180° turns, left- or right-hand, and matched to the height and speed of your existing straight conveyors.
02System 2 of 9
Overview
The Curved Belt Conveyors
- Smooth 30 to 180 degree turns
- No transfer gaps or product tipping
- Space-saving directional changes
Curved conveyors solve the problem every real facility runs into: the line has to change direction, but a butt-joined transfer between two straight conveyors is where product tips, spins, and jams. Probe’s curved units carry the load through the turn on one continuous radius belt, so a carton enters and leaves the corner in the same orientation it started.
The belt is cut and driven so its outer edge travels faster than its inner edge, holding product square through anything from a gentle 30° dogleg to a full 180° return. That keeps flow smooth at speed and protects fragile or unstable packs from the knocks a dead-plate transfer would give them.
Because a single curve replaces two conveyors and a transfer, it also buys back floor space — letting Probe route a line around a wall, a machine, or a workstation in a footprint a straight layout could never fit.
Why This System
The engineering choices that make the curved belt conveyors the right call for the job it’s built for.
Orientation Held
The belt is driven so the outer edge outruns the inner, keeping cartons and trays square through the bend — critical ahead of labellers, cameras, and sorters.
Any Angle, Any Hand
Built to your layout in 30°, 45°, 90°, 180° and custom angles, left- or right-hand, so the line follows the building rather than the other way round.
Footprint Recovery
Replacing two straights and a transfer with a single curve reclaims aisle and floor space in tight rooms and lets lines wrap around fixed obstacles.
Specification
At a Glance
Indicative build parameters. Every system is engineered to your product, throughput, and facility — final specification is confirmed at the audit.
- Turn angles
- 30°, 45°, 60°, 90°, 180° and custom
- Belt type
- Engineered radius belt, food-grade options
- Hand
- Left- or right-hand build
- Inner radius
- Sized to product footprint
- Frame
- Powder-coated steel or stainless
- Integration
- Matched to straight-belt line height and speed
Where It Works
Typical roles the curved belt conveyors takes on across UAE production and distribution lines.
- 01Packaging line direction changes
- 02E-commerce and parcel sortation
- 03Tight or L-shaped facility layouts
- 04Feeding labellers, cameras, and checkweighers
- 05Routing lines around fixed plant
- 06Food and beverage transport (food-grade belt)
Applications
Used in these industries
Common Questions
What operations most often ask before specifying a curved belt conveyors for their line.
Standard builds cover 30°, 45°, 60°, 90° and 180°, and Probe cuts custom angles where the layout needs one. Curves are made in both left- and right-hand configurations to match the direction of flow.
Yes. The radius belt carries each item around the curve on one continuous surface, so products keep their spacing and orientation into the next machine. The inner radius is sized to your product's footprint to prevent slipping or rotating.
In most cases, yes. We match the curve's height, belt width and speed to your existing line and plan the transfer points at both ends. A site survey confirms the fit before fabrication.
Specify the right curved belt conveyors for your line.
Tell Probe your product, throughput, and layout, and we’ll size and build the system around it.
