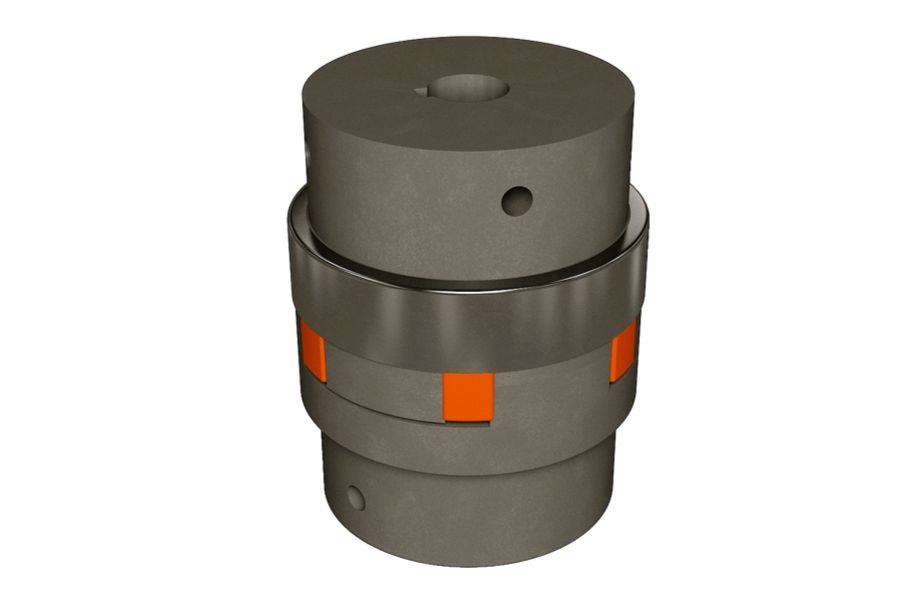

ESSEX Jaw Coupling
General-purpose flexible jaw coupling for incidental misalignment.
- Torque
- 20–2139 Nm
- Bore
- 15–90 mm
- Sizes
- Standard / External Spider / Cushion
Technical Specifications & Range
Three precision-engineered drive component families, designed to act as the perfect mechanical counterpart to industrial belting systems.

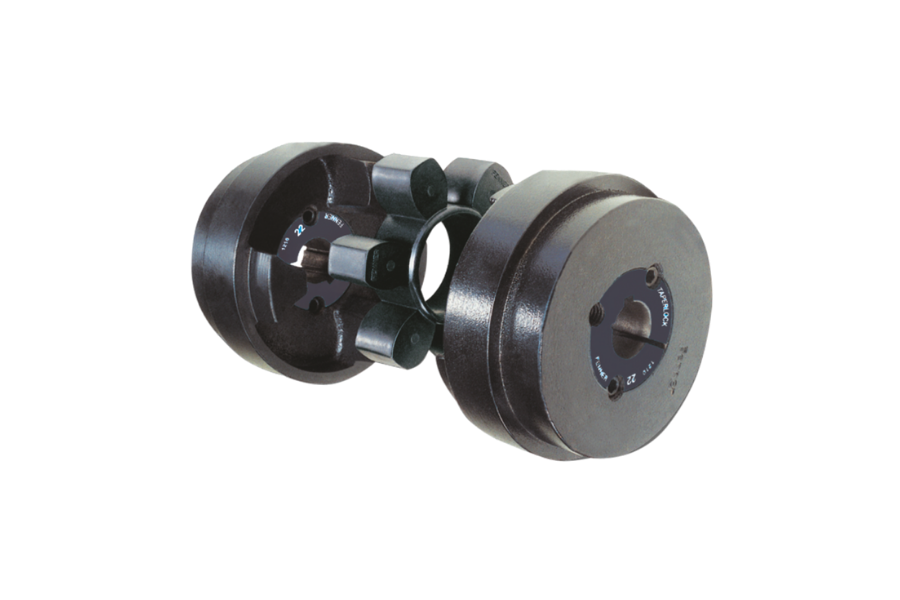

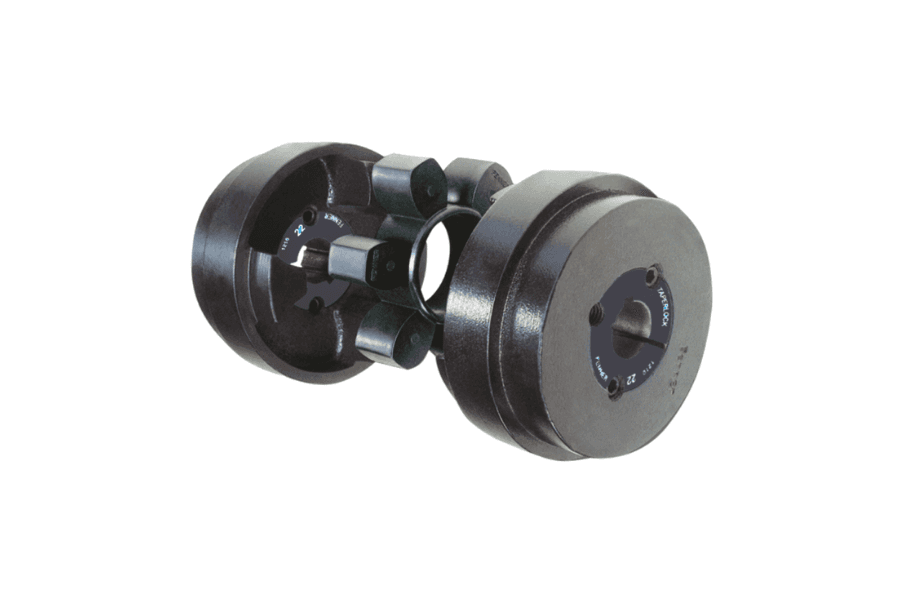

HRC Coupling
Higher power & misalignment capacity; Taper Lock or through-bore.
- Torque
- 5–3150 Nm
- Bore
- 9–115 mm
- Sizes
- HRC-70 to HRC-280

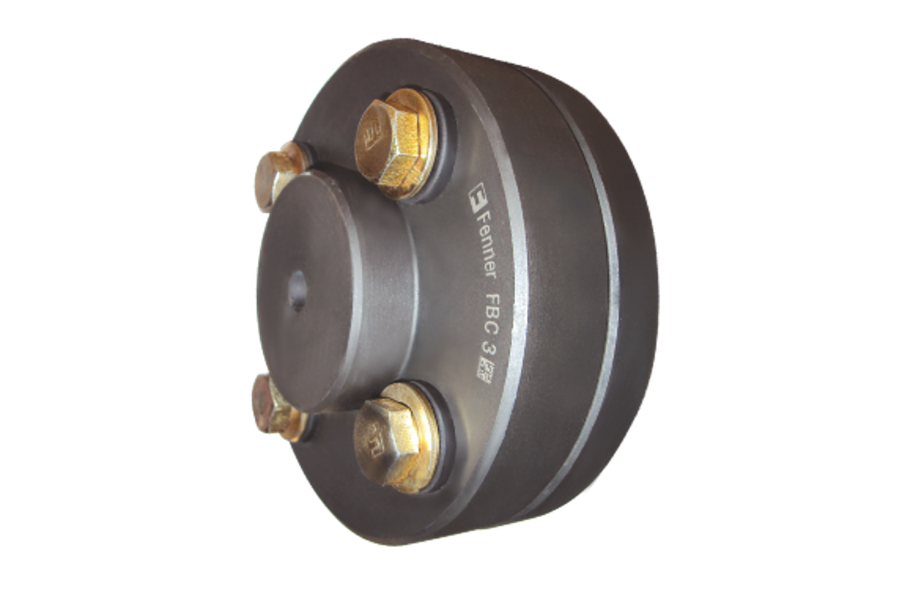

Pin Bush Coupling
Compact high-torque / high-speed flanges; no lubrication.
- Torque
- 77–197,600 Nm
- Bore
- 7–350 mm
- Sizes
- FBC-1 to FBC-17

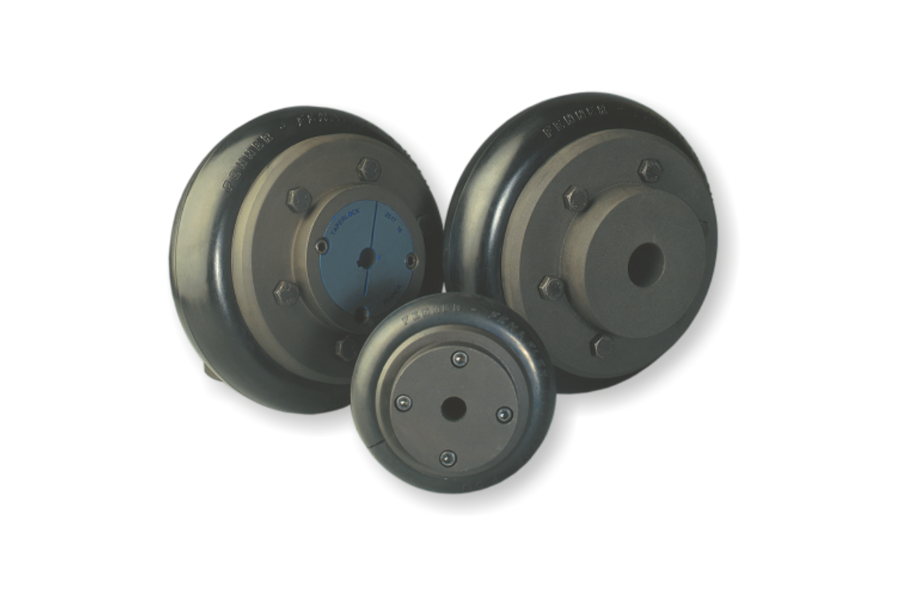

Fenaflex Tyre Coupling
Highly elastic, backlash-free; absorbs shock and vibration.
- Power
- 0.22–132 kW @ 100 rpm
- Bore
- 9–190 mm
- Sizes
- F40–F250

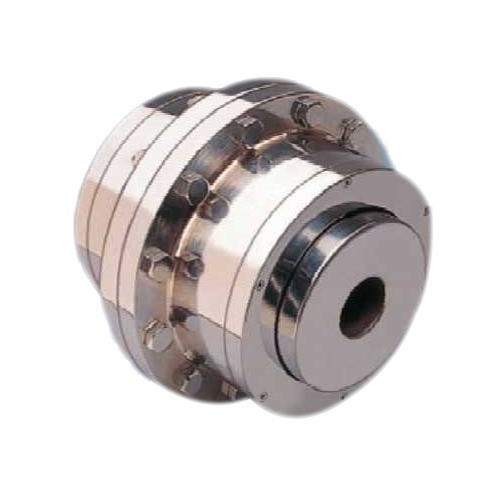

Gear Coupling
Crowned/curved tooth profile for high misalignment & power.
- Torque
- 1,100–1,470,000 Nm
- Bore
- 14–710 mm
- Sizes
- FGC-1 to FGC-19

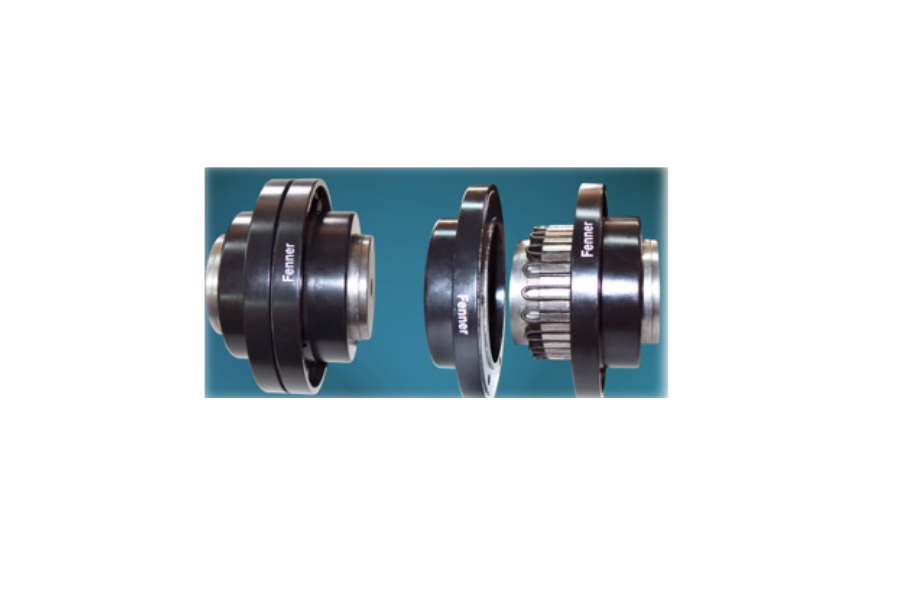

Resilient Coupling
High power rating with greater flexibility; split cover for install.
- Power
- 0.45–1308 kW @ 100 rpm
- Mount
- Vertical & horizontal split cover
- Flexibility
- High
Key Performance Features
Our power transmission components eliminate mechanical losses and ensure absolute structural integrity across your drive systems.
Materials & Construction
Manufactured using high-grade materials and strictly controlled processes to ensure extreme wear resistance and consistent performance under continuous, heavy-duty operations.
Drive Optimisation
Application-focused selection and integration designed to enhance mechanical efficiency, minimize friction losses, reduce maintenance requirements, and extend overall drive system life.
Fabrication & Customization
Adaptable solutions supported by in-house machining and modification capabilities - including custom bore sizing, keyway broaching, and balancing - to meet your exact dimensional requirements.
Global Compliance
All products are strictly aligned with recognized international industrial standards, ensuring ultimate reliability, safety, and seamless integration into varied system environments.
The Probe Advantage
We don't just supply standalone parts — we engineer complete drive reliability across your facility.
Complete System Alignment
Integrated drive components tailored perfectly to your belts and motors, eliminating mechanical losses and ensuring absolute drive reliability across your entire system.
Strategic Engineering
An application-driven approach — we assess your operational bottleneck rather than simply supplying a product, ensuring the right component for your specific load and duty cycle.
Proven Industrial Reliability
Decades of trusted performance across diverse industrial sectors in the Middle East, backed by deep regional inventory and rapid part availability across the UAE.
Frequently Asked Questions
Common questions about SMSR gearbox selection, coupling types, and custom machining across UAE industrial operations.
Ensure consistent power transmission and system stability across your facility.
Get a custom quote tailored to your drive system requirements, torque specifications, and facility environment.
